TRUCK CARGO BODY

COOL & DRY

icon_cargobox TRUCK COOL BODY

HINO-CAGOBOX-COOL

“If you need it, we can build it.”

The hi-tech process of Fiberglass Cargo Box manufacturing, which is approved by ATP, Germany. Fiberglass sheet with gelcoated surface, produces a quality light weight and strong product that is easy to repair and maintain. It is non-toxic and fungus resistant, so there will not be any chemical residue in food and beverage. Carryboy Cargo Box produced under German Federal Law on Foodstuffs and Consumer Goods — It’s a favorite of a variety of delivery businesses.

HINO-CAGOBOX-COOL-1

The Innovative
Quality and Design

Transporting perishables Our refrigerated trucks include a refrigeration unit on the cargo area for climate control. Also known as reefers, these trucks maintain specific climates for temperature-sensitive loads.

Our truck cargo bodies are designed specifically for the truck transportation industry,  and we are committed to designing and manufacturing truck refrigerated bodies that can deliver optimum productivity in the distribution of refrigerated cargo…

CARRYBOY-CAGOBOX-COOL-5
CARRYBOY-CAGOBOX-COOL-3
CARRYBOY-CAGOBOX-COOL-2
CARRYBOY-CAGOBOX-COOL-4

Committed to designing and manufacturing pickup refrigerated bodies that can deliver optimum productivity in the distribution of refrigerated cargo…

Model Exterior (mm.) Interior (mm.) Loading
Capacity

(cu.m.)
Weight
(kgs.)
Length Height Width Length Height Width
CBM-COOL (-5°C ) 2,420 1,750 1,800 2,170 1,450 1,640 5.1 617
CBM-COOL (-25°C ) 2,420 1,750 1,800 2,170 1,450 1,580 4.9 637
CBM-SCHOOL-MILK (-18°C ) 2,420 1,750 1,800 2,170 1,450 1,640 5.15 650
CBS-COOL 2,420 1,370 1,800 2,170 1,070 1,580 3.67 487

** Some details may be changed without prior notice.

STANDARD EQUIPMENT

The premiere Cool freight pickup body on the market

detail_IsuzuNME130_5

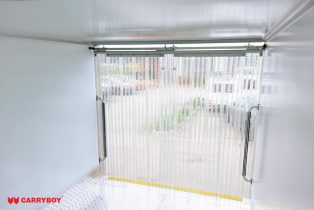

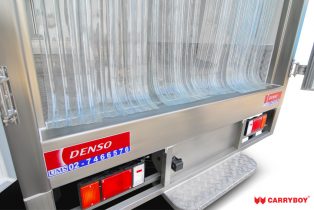

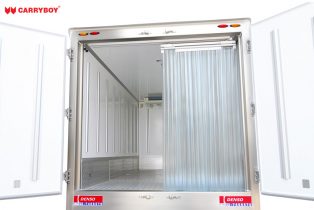

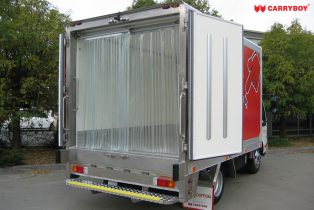

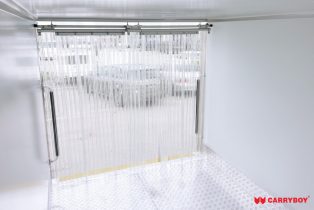

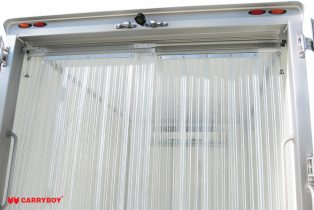

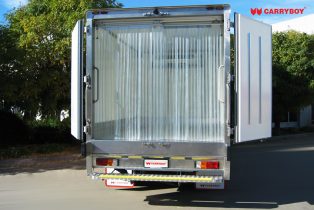

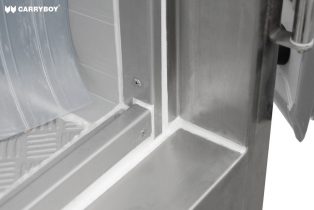

  • Cool air store curtain
    Keeps the cool air inside the car and prevents hotter air getting into the car.
detail_IsuzuNME130_1

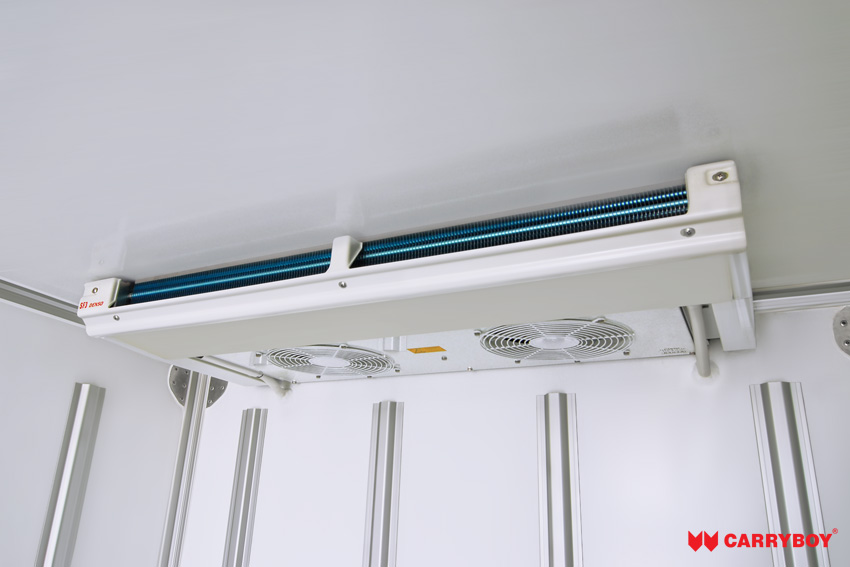

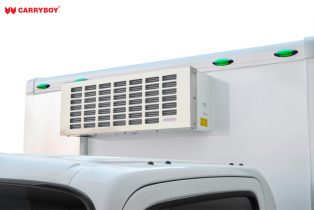

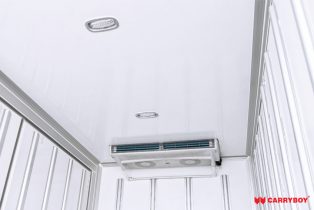

  • Cooling Unit
carryboy_dry_detail3_1

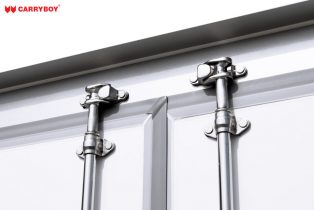

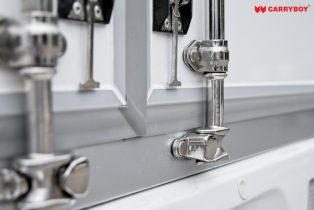

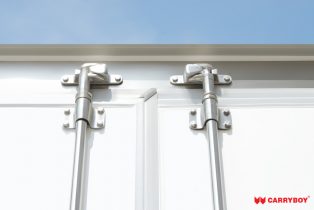

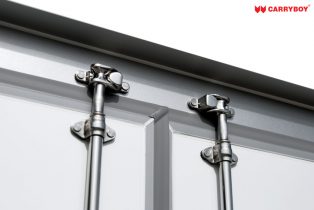

  • Rear door lock pillar

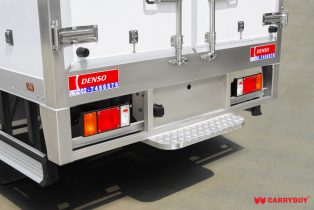

detail_IsuzuNME130_3

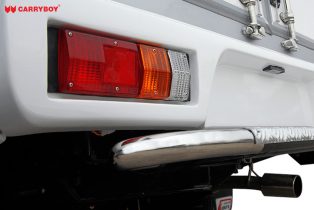

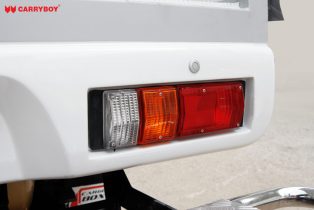

  • Break Light
carryboy_dry_detail5_1

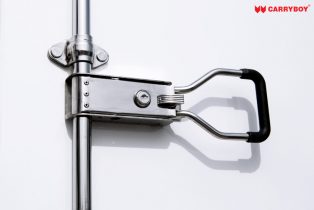

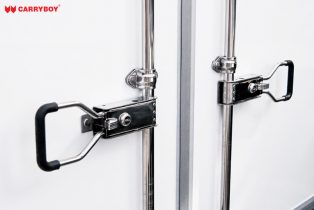

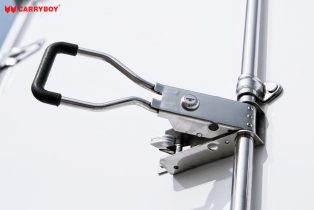

  • Handle Opener with key
carryboy_freezervehicles_detail17_1

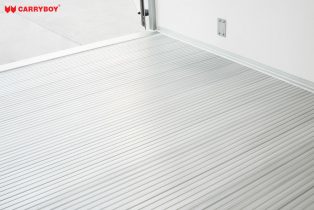

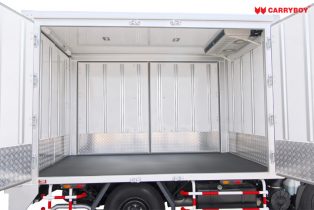

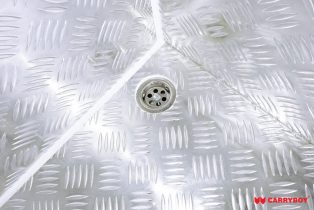

  • Aluminum Floor
carryboy_freezervehicles_detail16_1

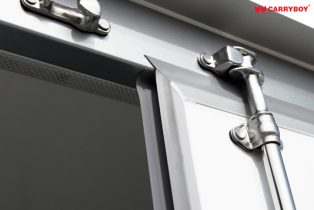

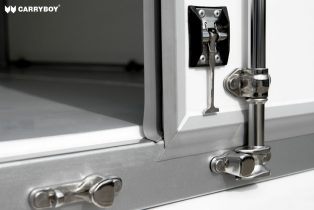

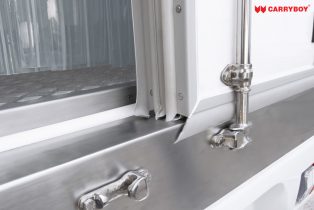

  • Rubber Door Gaskets

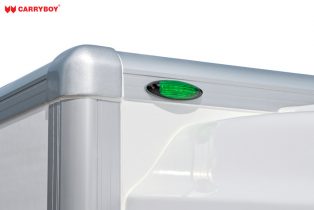

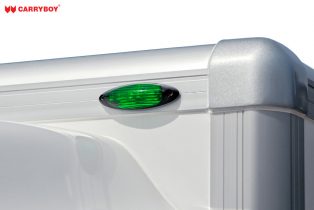

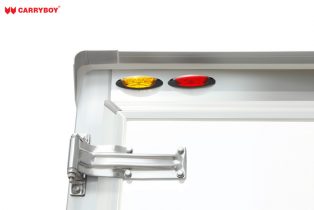

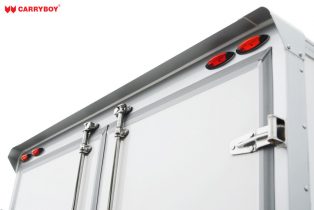

Front upper light : 4 Green LED lights per car

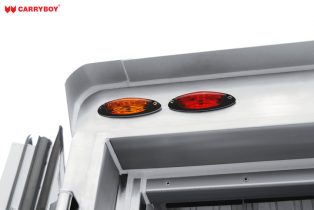

Rear upper light : 2 Yellow LED lights per car, 2 Yellow LED lights per car

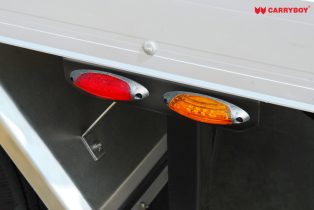

Left-turning light : 2 sets per car

Light bulbs and switch set : 1 set per car

Emergency alarm : 1 set per car

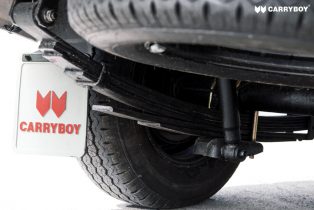

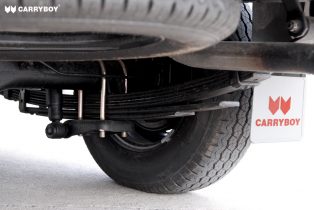

Car’s Suspension : 3 sheets each side per car

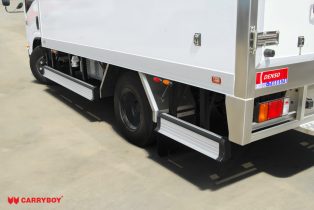

Side, Rear Skirt set : 1 set per car

Cool air store curtain : 2 mm thick transparent sheet

Slide curtain pole : – 40°C resistance

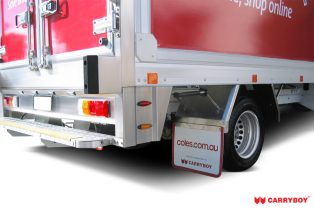

Stainless rear steps : 1 set per car

Stainless rear mudguard : 2 sets per car

Mud flap : 2 sheets per car

Drain tube : 1 set per car

QUALITY MAKES THE DIFFERENCE

A general purpose high cube dry freight body, with added space as the primary advantage of the XPS (Extruded Polystyrene Foam). The absence of exterior seams and rivets provides an ideal surface for custom decals and painting.

Non-toxic and fungus resistant are the characteristics of our fiberglass sheets which are approved by ATP in Germany under German Federal Law on Foodstuffs and Consumer Goods. Hi-tech manufacturing process to make sure there will not be any chemical residue in food or beverage during the transportation.

carryboy_freezervehicles_main_structure_wall

Wall

Sandwich panel system, Made from fiberglass, No joint, White gel coated surface, XPS (Extruded Polystyrene Foam)
carryboy_freezervehicles_main_structure_floor

Floor Sheet

• 2 mm thick aluminum sheet
• 10 mm thick Waterproof plywood
• Extruded Polystyrene Foam (XPS)
• 1 mm thick Fiberglass (ST)

carryboy_freezervehicles_main_structure_frame

Main Structure

Premium grade ANODIZED-coated aluminum sheet, strong but light weight,exclusive designed only for CARGO BOX COOL.

carryboy_freezervehicles_main_structure_adhesive

Adhesive Bonding of Structure

Fasten the main box structure by adhesive glue that is best for tensile and shear strength UV Protection, NO cracking, NO being yellow, NO mold, extend useful life time

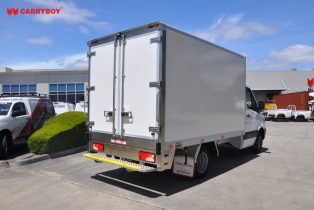

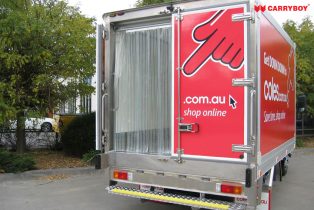

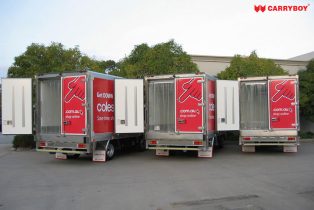

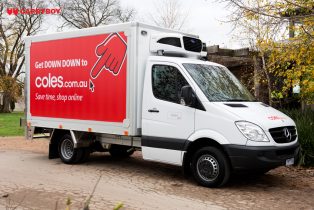

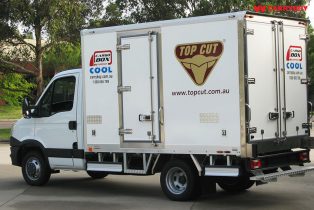

GALLERY TRUCK COOL CARGO BOX BODY

icon_cargobox TRUCK DRY BODY

cagobox-revo-2

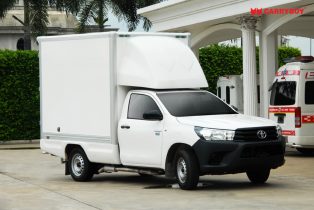

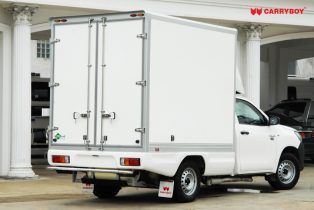

CARGOBOX DRY

CARGO BOX — As a cargo body specialist we have the experience & expertise in dry freight body building. With 34 years experience as customer body specialists, developing a specification to meet your needs is not only our primary goal, it’s our proven area of expertise.

FIBERGLASS ADVANTAGE

The hi-tech process used in our Fiberglass Cargo Box manufacturing, has been approved by ATP, Germany. Fibreglass sheets with a gelcoated surface, provide qualities of light weight and strength, which are easy to repair and maintain. These are non-toxic and fungus resistant, so there will not be any chemical residue in food and beverage. Carryboy Cargo Box produced under German Federal Law on Foodstuffs and Consumer Goods — It’s a favorite of a variety of delivery businesses.

cagobox-revo-1

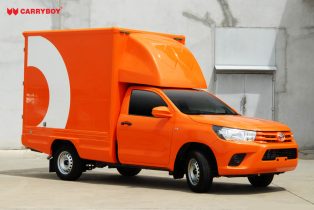

Cargo Box-CBL-Carryboy3
Cargo Box-CBL-Carryboy2

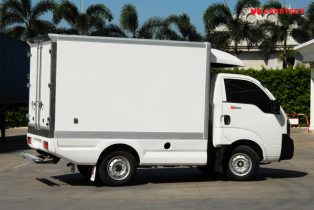

cargobox-cool-Carryboy4
Cargo Box-CBM-Carryboy

“If you need it, We can build it.”

Carryboy’s series of dry freight pickup/truck bodies are designed and built to satisfy your every need. Cargobox can custom build the body-type you prefer.

Model Exterior (mm.) Interior (mm.) Loading
Capacity

(cu.m.)
Weight
(kgs.)
Length Height Width Length Height Width
CBLL Made to order in special design and height; higher than 1,970 mm.

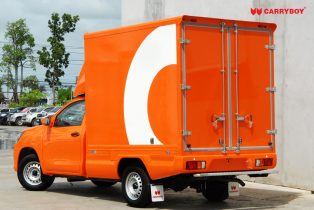

CBL 2,420 1,970 1,800 2,370 1,850 1,730 7.5 360
CBM 2,420 1,650 1,800 2,370 1,530 1,730 6.2 310

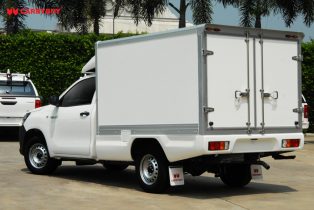

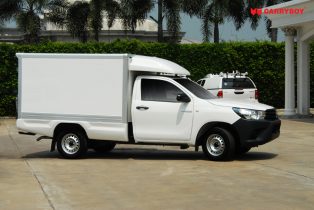

CBS 2,420 1,370 1,800 2,370 1,250 1,730 5.0 255
CBSS Made to order in special design and height; lower than 1,370 mm.

** Some details may be changed without prior notice.

The premiere dry freight pickup body on the market

A general purpose high cube dry freight body, with added space as the primary advantage of the XPS (Extruded Polystyrene Foam). The absence of exterior seams and rivets provides an ideal surface for custom decals and painting.

STANDARD EQUIPMENT

The premiere Dry freight pickup body on the market

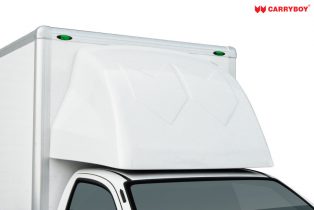

scorp_cbl

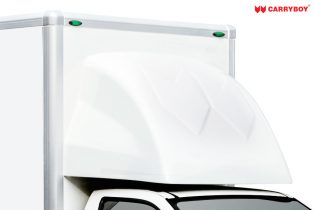

  • Front scoop (option) Aerodynamic design made from FRP provides aerodynamic efficiency and economy through fuel saving.
forging_lock2

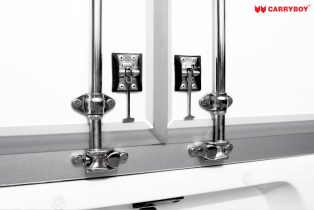

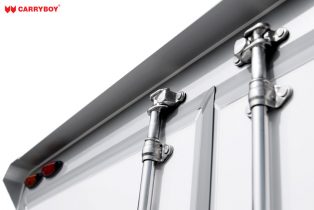

  • Rear door lock pillar
carryboy_dry_detail9_1

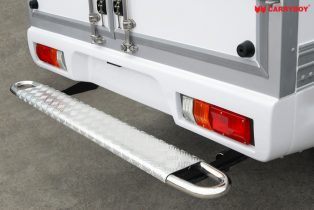

  • Rear Bumper with door step
carryboy_dry_detail15_1
  • Side Skirts
carryboy_dry_detail5_1

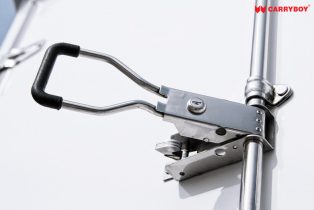

  • Handle Opener with key
cargo_hook2

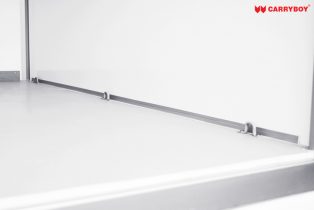

  • flooring
carryboy_dry_detail8_1

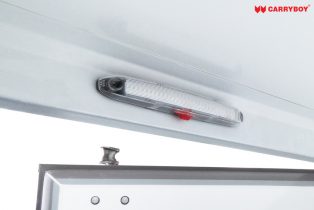

  • Interior Light L.E.D.

A general purpose high cube dry freight body, with added space as the primary advantage of the XPS (Extruded Polystyrene Foam). The absence of exterior seams and rivets provides an ideal surface for custom decals and painting.

carryboy_freezervehicles_main_structure_wall

Wall

Sandwich panel system, made from fibreglass and XPS (Extruded Polystyrene Foam), with no joints and a white gel coated surface,
carryboy_dry_main_structure_adhesive

Adhesive bonding for best

For best bonding for tensile and sheering strength. UV protection grade. No cracking. No yellowing and no fungus. Prolong the usability.

carryboy_dry_main_structure_frame

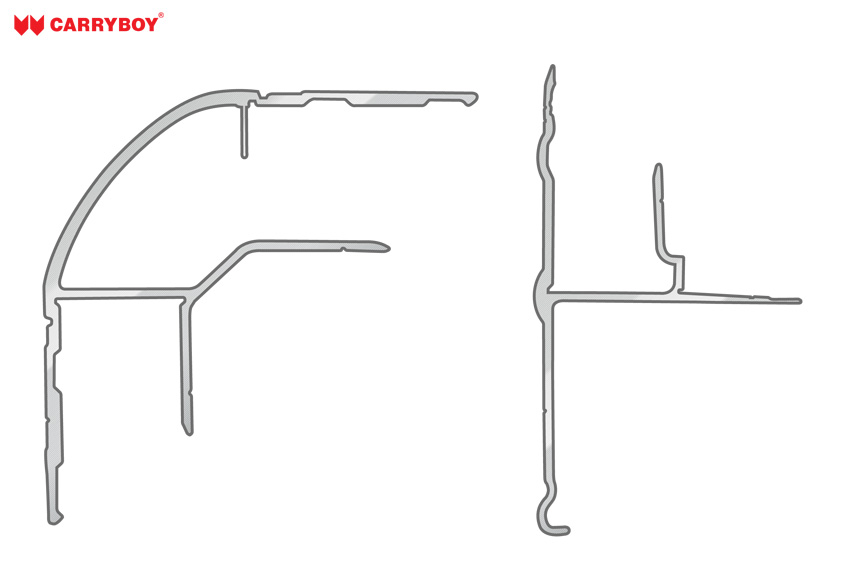

Aluminum frame structure

Main Structure produced from high grade aluminium with anodised coating, giving a strong and light structure. Exclusively designed for Carryboy.

carryboy_dry_main_structure_floor

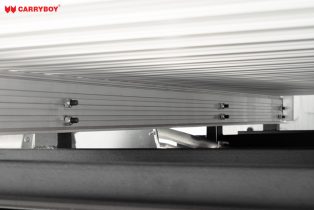

Floor

Mill Aluminum Extrusion, T6 grade and homogenized, which provide strong and light application.

GALLERY TRUCK DRY CARGO BOX BODY

* Carryboy Cargobox. reserves the right to change or modify the price, amenities, interior, exterior and specification at any time without prior notice.
** All designs and techniques of the products have been protected by law; from patent and copyright. The imitator will be prosecuted.
*** The descriptions and illustrations shown here are for information purpases only. Pictures may vary from actual unit.
